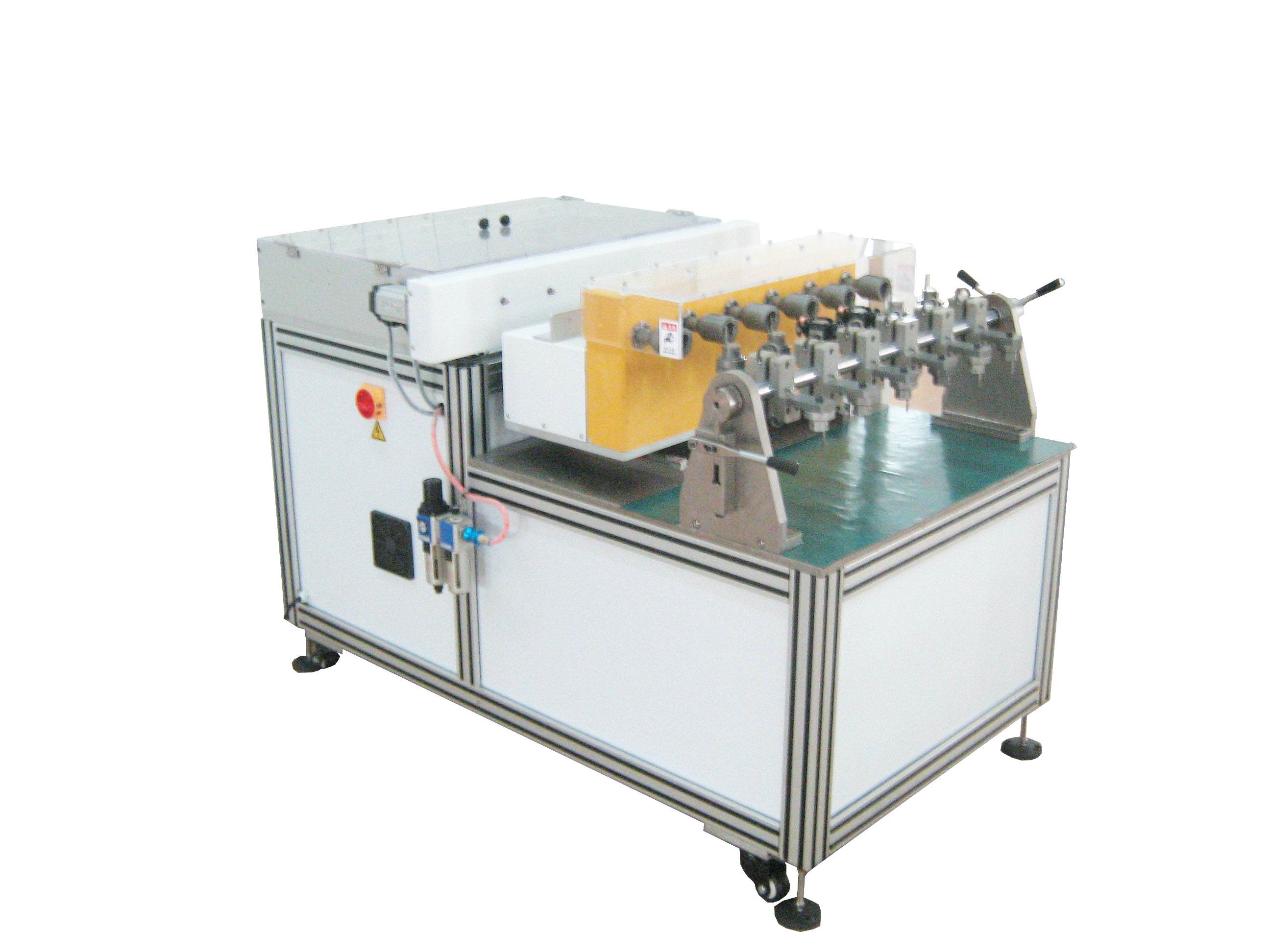

Automatic winding machine

■ This equipment is fully automatic multi-functional winding machine developed and manufactured by manufacturers for medium and various flat windings, such as small transformers, small relays, etc.

■ Simple operation and easy to use. The whole process is automatically loaded, wound, unloaded, welded, whole foot, inspected, loaded by the equipment.

■ High-efficiency production. The equipment can run at a maximum speed of 30,000 RPM. According to the calculation of relay T73, a cycle can be completed in the fastest 24 seconds.

■ Self-developed latest CNC bus control, LCD touch screen, full Chinese display. The program takes steps as a unit. All functions, actions, winding positions, execution status, faults, etc. are all displayed on the screen at a glance. Setting and modifying programs can be operated without professionals.

■ The tension device is controlled by electronic precision or pneumatic pressure. The operator can set the tension parameters in the corresponding steps in the program, and the corresponding tension value can be obtained in the corresponding period.

■ Main equipment parts warranty for 3 years. Lifetime maintenance. Industry first, highest cost performance.

■ The main parts of the equipment adopt imported products, the appearance of the equipment is beautiful, and the noise can reach the standards of foreign high-end winding machines (ie, the speed is less than 80 decibels at a speed of 20,000 revolutions)

■ Stable equipment performance 120 hours of continuous production after field production verification.

■ Easy maintenance, the program adopts dual-layer memory / U disk storage protection, and a remote maintenance system can be optionally connected to our network for system maintenance. The controller can control and drive about 20 servo motors in the world.

■ Quick service. Professional service staff is on call 24 hours a day to troubleshoot any problems for customers.
