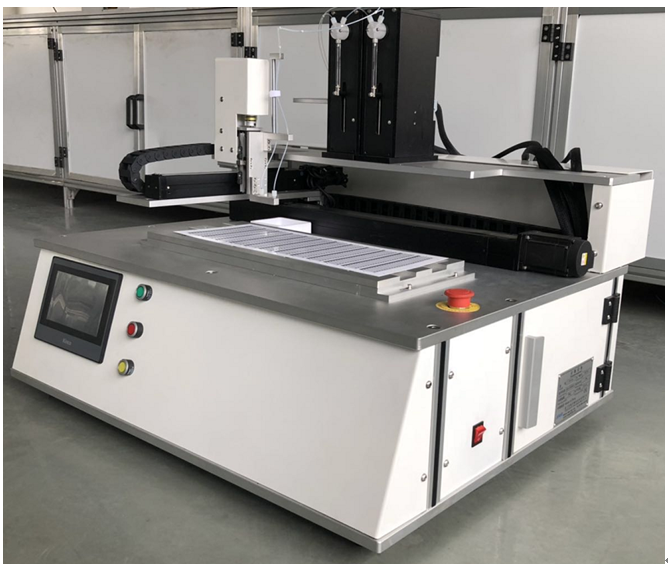

Blood glucose test strip desktop automatic point enzyme machine
Description:
1. This equipment is developed for biochip and biosensor electrochemical test strip manufacturers.
2. The equipment can be customized with an externally installed sealed protective cover and an internal temperature and humidity controller to ensure that the interior of the machine is suitable for the environmental requirements of the product.
3. The equipment can be customized. The high-precision laser measuring instrument can accurately locate the products with specific signs and color blocks (such as electrodes or other lines) printed on the surface. The equipment is equipped with an independent three-coordinate system. Line shapes can be set independently for different products. Round, array and other products of different specifications.
4. When using multiple channels, different channels can be set separately, with different doses, and the device can point up to 16 different doses of reagents at the same time. The channels are completely independent of each other and will not cause cross infection.
5. The needle or spray valve is easy to clean, and the equipment is automatically completed during the cleaning process.
6. The operation interface is simple and clear, and the teaching mode is configured. Do not repeatedly flip the interface setting items, the logic is in line with human thinking, giving people a comfortable and relaxed working state
model
WM-403S
Worktable stroke
200mm-800mm to determine the work surface according to the product size
Coordinate error
+ -0.02MM
Spotting full stroke accuracy
<2%
Spotting full stroke accuracy
≤1%
Suction device
can choose
Syringe specifications
50 μL to 1 mL
Standard dispensing / suction accuracy
24000 steps
Microstep dispensing / suction accuracy
48000 steps
Precision
<1%
Accuracy
<2.0%
Spot size
500NL-3UL
Number of channels
1-16 channels
Channel parameters
Each channel dose can be set individually.
Spitting speed
2-120 times / second (varies according to different valve and pump speeds)
Coordinate moving speed
15 m / min
Control System
Motion Controller
Recognition line
Optical fiber identification (optional)
CCD detection
Can be increased (optional)
extensions
Provide 6 IO points to facilitate the establishment of production lines in the future (optional)
Program operation
Touch screen human-machine interface input
Remove static electricity
Can be increased (optional)
Equipment size
960MM * 750MM * 600MM (the size of the equipment will vary depending on the stroke)
Use of electricity
220V 50 / 60HZ power consumption: 1.7KW
Gas source
0.6-0.8PPM (optional)
weight
About 100 kg
The equipment is continuously updated without notice
