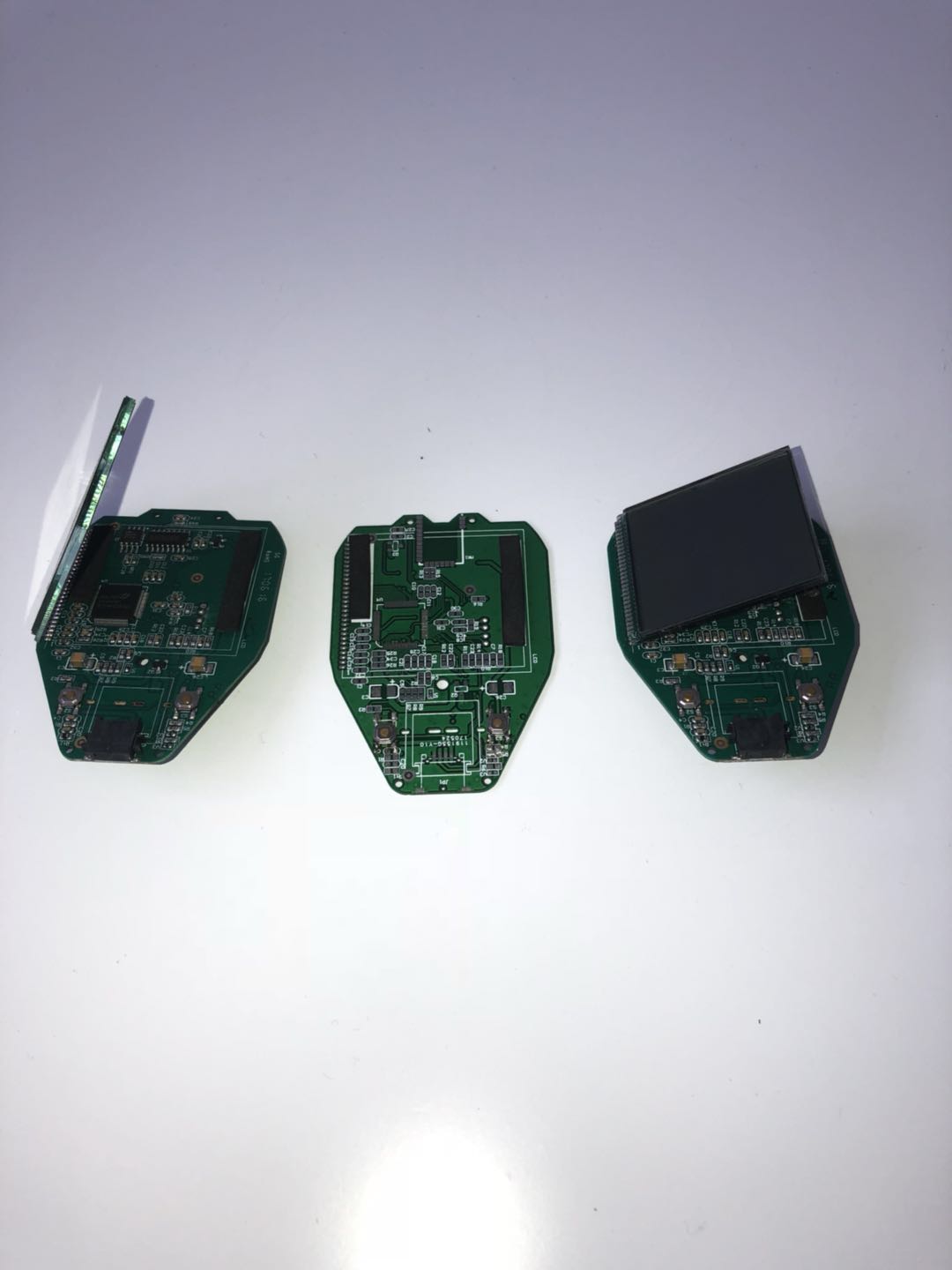

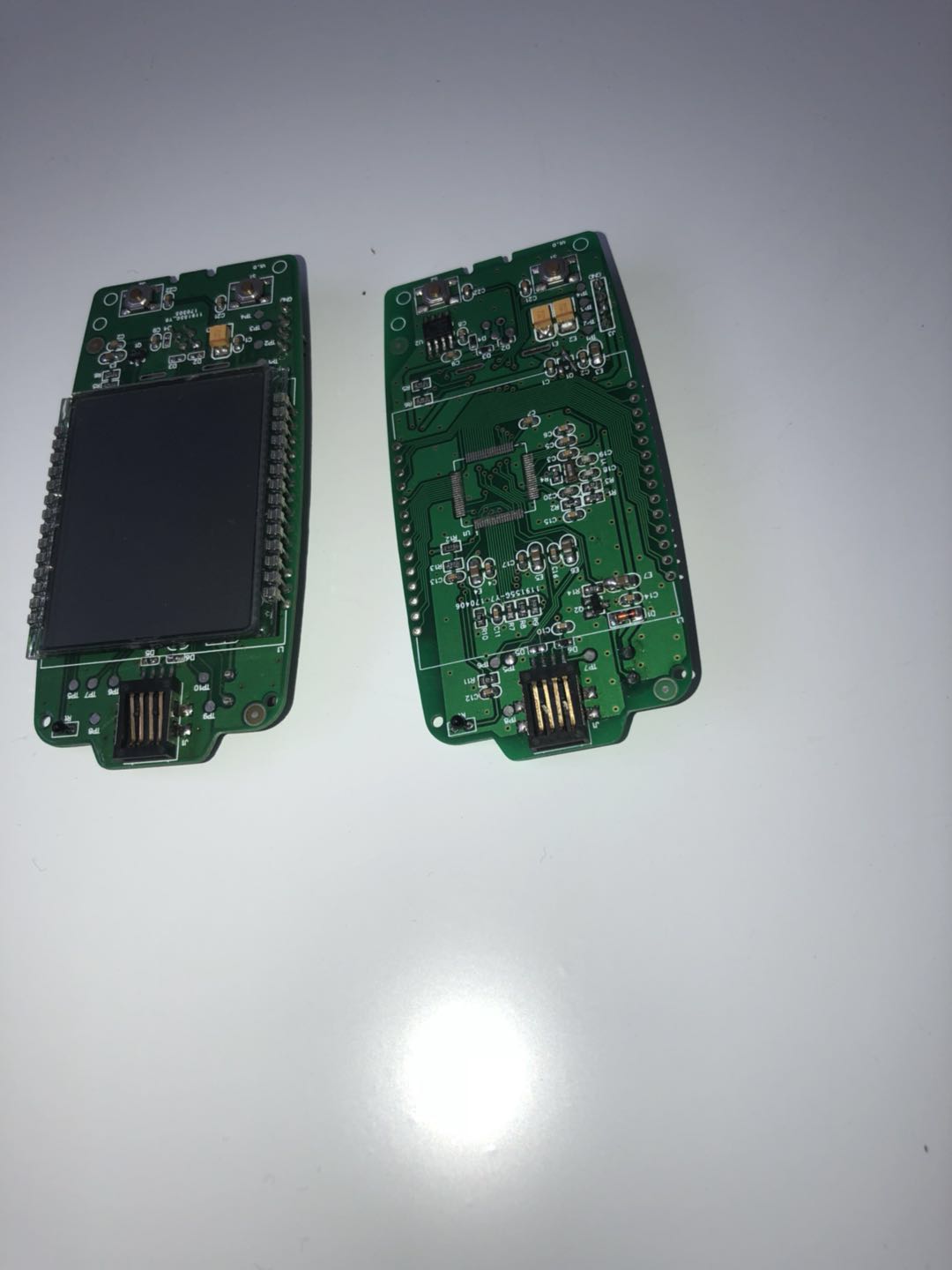

Biochip biosensor blood glucose meter, uric acid meter, total cholesterol, triglyceride, blood ketone instrument detection module PCB
Description:
Items Blood glucose meter, uric acid meter, total cholesterol, triglyceride, blood ketone instrument
Structural composition Circuit board, buttons, display screen, test strip insertion port,
Product manufacturing materials or materials in contact with human body Manufacturing materials in contact with human body: ABS, top cover transparent window: PMMA
Applied voltage 0-450MV adjustable
HCT algorithm custom increase
Sterilization / disinfection method Not applicable
Power DC 3V, 2 AAA alkaline batteries (size 7 battery)
Chinese and English voice
Date and time After replacing the new battery, you need to set the date and time manually
Measurement method Electrochemical electrode method
Result unit mmol / L (default), or mg / dL, can be set
7 days, 14 days, 28 days average
Store results 512 records
Display screen LCD segment code screen (customized)
Detection time 5-8 seconds
Temperature sensor Yes
Operating environment 10-37 ℃, humidity: 10-80%
Automatic withdrawal of test strips Yes, automatic withdrawal of test strips
Low battery alarm
Temperature alarm Yes, temperature out of range alarm
Low Blood Alarm Yes
Detection result alarms Yes, exceeding detection range alarm
Expiration date of test paper Yes, the instrument will automatically judge
