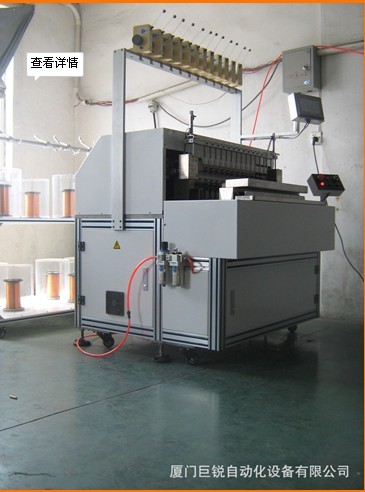

全自动平绕式16轴绕线机
产品说明：
- the equipment for all kinds of flat around, such as small transformer, small relays, production manufacturers have developed and manufactured full automatic multifunctional round line machine.
Make operation simple and easy to use, the whole operation by the equipment of automatic feeding, winding, unloading, wire etc.
Exergy, energy production, equipment operation maximum speed can reach 30000rpm. According to the relay T73 calculation the fastest 24 seconds to complete a cycle.
- the latest self-developed CNC bus control, LCD touch screen, full display Chinese. Program is an unit with the step, all function, action, winding position, implementation status, fault, are displayed on the screen at a glance, set, modify the program does not have to be professional staff is required.
Exergy tension device for precision electronic or pneumatic electronic, the operator can be in program corresponding steps in setting the tension parameters, you can during the corresponding period to get the corresponding tension values.
The main equipment accessories - 3 year warranty. Lifelong maintenance. Industry initiative, the highest price ratio.
The main parts of the equipment through the use of imported products, the beautiful appearance of the equipment, noise can reach foreign high-end winding machine line standards (that is, the speed of 20000 transfer noise 80 decibels)
In the performance of the equipment is stable through on-site verification of production for the production of 120 hours.
Simple maintenance of exergy, the program uses memory / U disk storage double protection, selection of remote maintenance system and the company network connection system maintenance. The controller can control about 20 servo motors in the world..
- fast service. Professional service personnel 24 hours standby for customers to remove any trouble.
- Tel: 15659800606
BM-16-36 BM-12-51 BM-08-60 BM-20-30
Axis number: 20 axis 16 axis 16 axis 12 axis 8 axis 12 axis
Wheelbase: 30mm 30mm 36 mm 51 mm 51 mm 60 mm
Controller: bus control four axis / six axis linkage controller
Storage: U disk + memory double protection
Maximum spindle speed: 24000/30000RPM 24000/30000RPM 16000RPM 15000/24000RPM
Spindle angle: 360 degree 0.1
Moving range of needle:
X axis (left and right): 100mm mobile accuracy 0.01mm
Y axis (front and rear): 100mm mobile precision 0.01mm
Z axis (upper and bottom): 60mm mobile precision 0.01mm
Line diameter range: 0.03-0.3mm (according to the wire diameter select tension device)
Maximum diameter: 28mm 34mm 34mm 49mm 49mm 58mm 28mm
The maximum line width: 50mm
Leg processing: horizontal /90 degree / vertical winding
Use power: 50/60HZ AC380V three-phase
Air pressure: 0.35-0.6MPa
Equipment size: about 1400 long *1900 wide *1200 high mm / after 1400 long *1200 wide *2200 high mm
Dimensions: about 1600 long *600*1400mm
Total weight: about 600 kg
Stranded wire machine
Line diameter range: 0.03-0.15mm
The number of shares: the odd shares / minimum 3 shares
Strand length: 100-300mm / 100-380mm
Strand speed: 0-6000RPM
