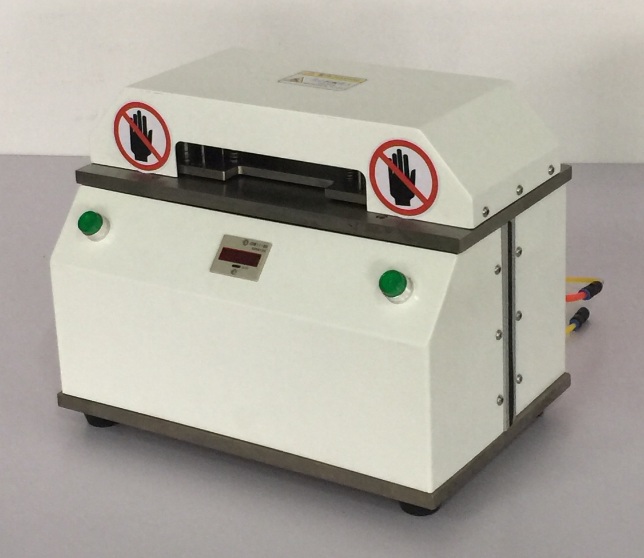

Production process • The operator places the entire roll of raw PET in the equipment work area. The operator presses the operation switch to complete the automatic punching and the waste material automatically falls into the collection box. Automatic collection of finished products

Ranch

Item Standard Remarks

Blanking speed: once every 3-5 seconds

Blanking pressure 3T-5T

Standard efficiency of punching: 60 punches per minute is the maximum stress

Die wear rate: about 50,000 cuttings. Depends on proper maintenance and correct installation and commissioning methods (trimming can be performed after wear)

Infrared safety sensor response time is 10ms when working area. Hand or foreign object penetrates, from the time of sensing infrared to power off.

Production speed adjustable

Movement accuracy 0.01MM (actual 0.05 deviation)

Degree of automation

Mold material SKD-11

Operation method Foot switch / or dual switch button

Power use AC220V / 50 60HZ

Power Consumption

Use gas source 0.6-0.8MPa clean and stable gas source

Expansion can be connected to the feeding and receiving system can be expanded when the material is rolled

Precision Cutting size + -0.02mm will have different errors for each type of material
