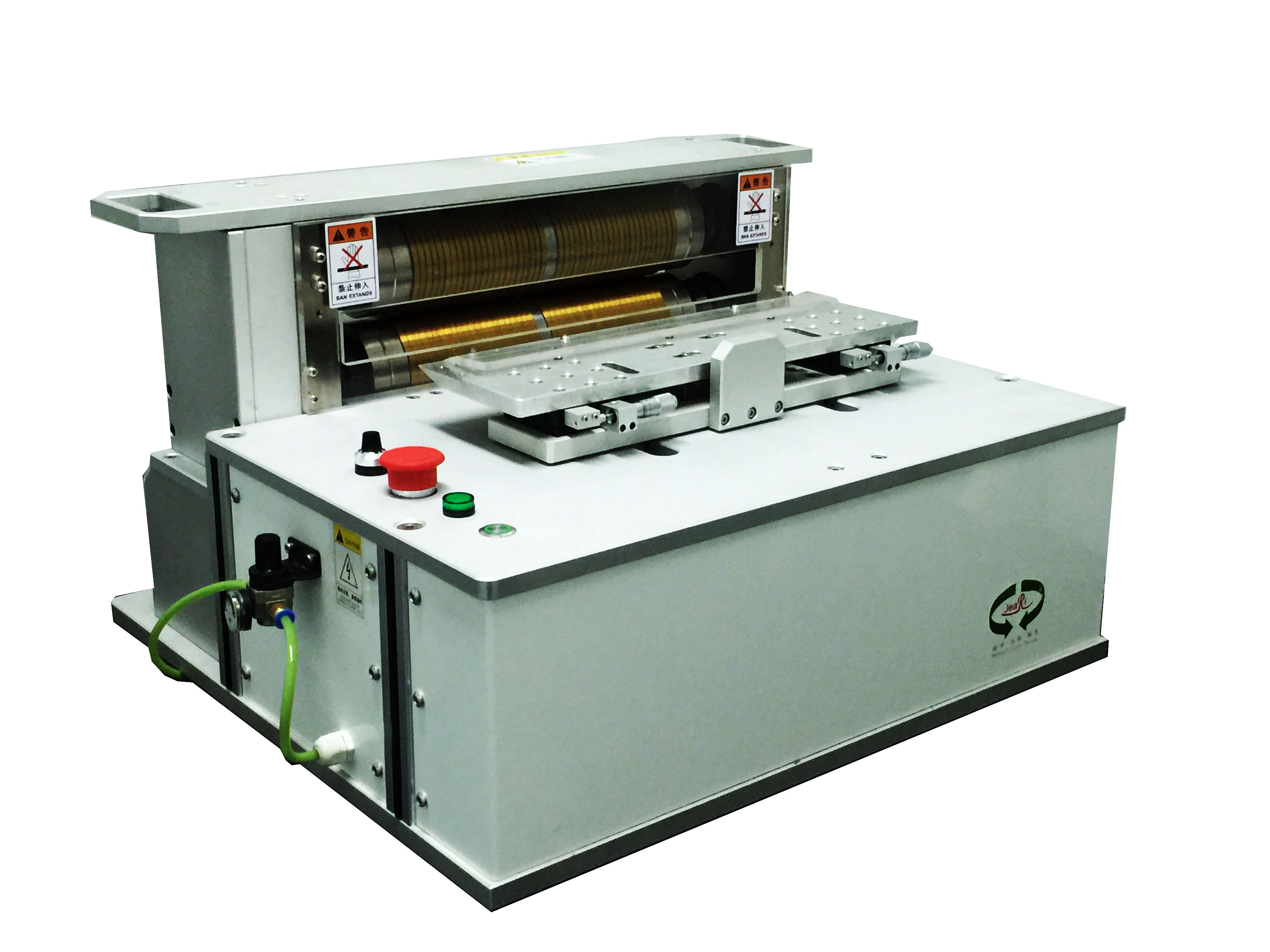

Blood lipid Test strips non-contact cutting machine

Process equipment for photochemical coloration dry--Blood lipid Test strips non-contact cutting machine

Description:

1, the equipment for paper manufacturers, research and development of highprecision and high efficiency cutting equipment

2, equipment can be divided into: 1. sensor-specific identification,automatic calibration, 2. the artificial edge, 3. mounting hole location. 3types of orientation. Fast speed, high efficiency, stable quality, is theproduction of ideal equipment.

3, a specific flag for printing, color block (such as electrodes and otherlines) paper, digital fiber optic scan accurately.

4, artificial edge alignment and mounting hole location. Types of deviceswithout editing the program. Simple and quick operation

5, the use of imported HSS-AL high speed steel blades, has good abrasion resistance and durability. Estimated customer need titanium handle,generally have access to 2-3 no need for Regrinding.

6, equipment can be positioned as separate stations on the production line,cooperate with the fully automated production line.

7, simple operation, do not repeatedly turn the interface settings project,artificial optical alignment function without editing the program. Logicalhuman thought, gives a comfortable, relaxed working conditions

Technical parameters

Table travel 100mm-320mm according to the product to determine the size ofwork table

Cutting precision fiber optic sensor: line error +-0.05mm (100mm length)

Manual positioning: line error +-0.05mm (100mm length)

Depending on the material may have a slight float

Rotary cutting blade precision: +-0.005MM

Maximum section width 5-8MM/width as required customization

Positioning 3 functions/include

1 hole

2 line positioning

3 fibre orientation

3 features to choose from.
