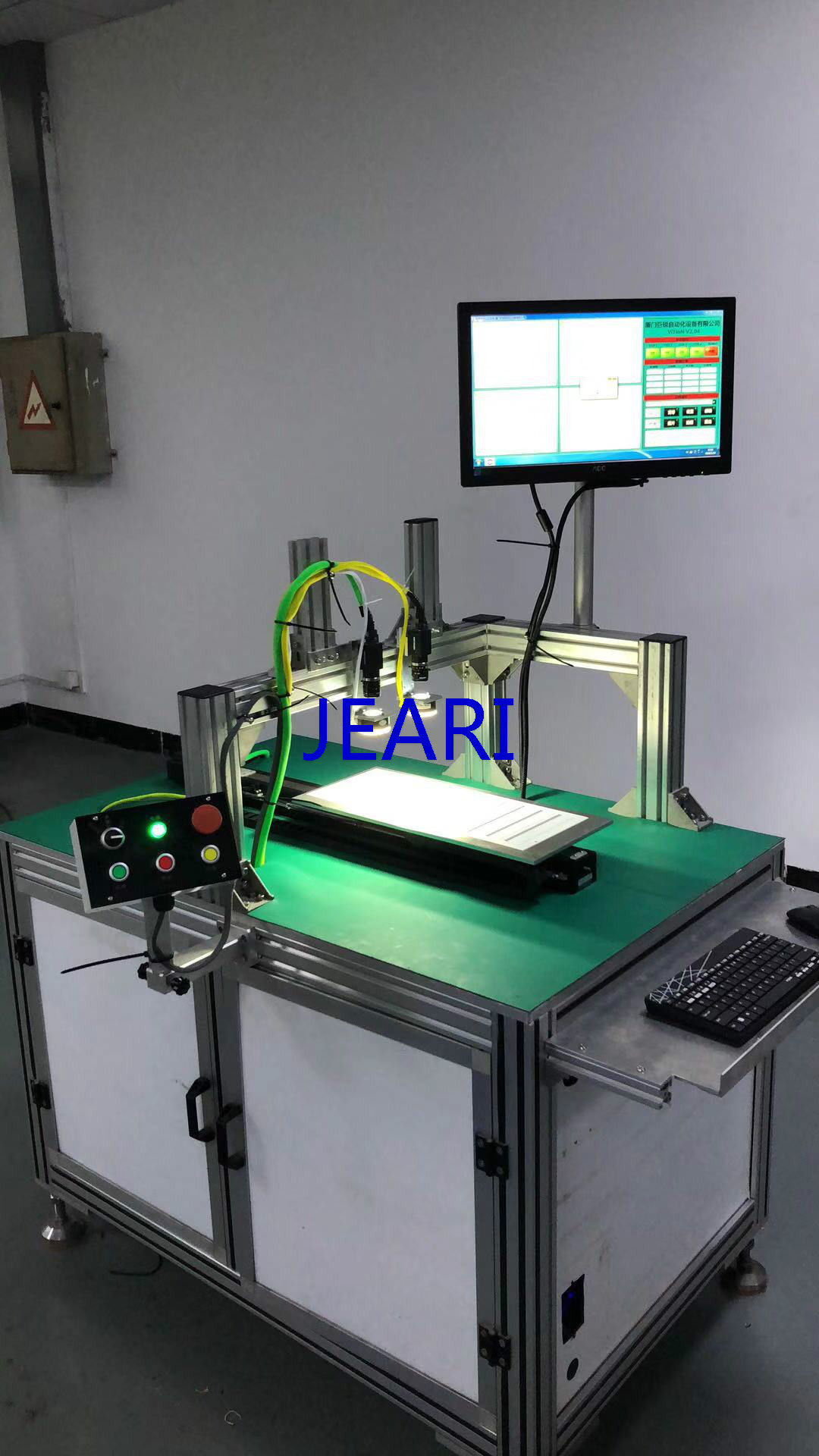

Diagnostic test paper laminating and laminating machine

1. This equipment is for the press-fit equipment after the test paper is pasted.

2. The device has an automatic sensing function. When the test strip enters the working area of ​​the device, the device starts automatically, with fast speed, high efficiency and stable quality.

3. For products with different thicknesses and layers, the equipment can adjust different pressing forces.

4, customized for special customers can add a link module for a single work station on a fully automatic laminating machine.

6, the operation interface is simple and clear, do not repeatedly flip the interface to set items, the logic is in line with human thinking, giving people a comfortable and relaxed working state

Model WM-203 WM-801 includes stand-alone and work stations connected to the production line

Worktable travel 100mm-480mm Determine worktable according to product size

Applicable thickness within 0.1-2.5mm

Speed ​​up to 400MM per second, speed can be adjusted

No programming required

Adjustable pressure: 5-80KG

Mechanical size 760MM * 600MM * 600MM (the shape will be changed according to the product customization)

Mechanical weight: about 115KG

Power consumption: about 0.4KVA

Power supply: AC220V / 50, 60HZ

Technical parameters are subject to change without notice
