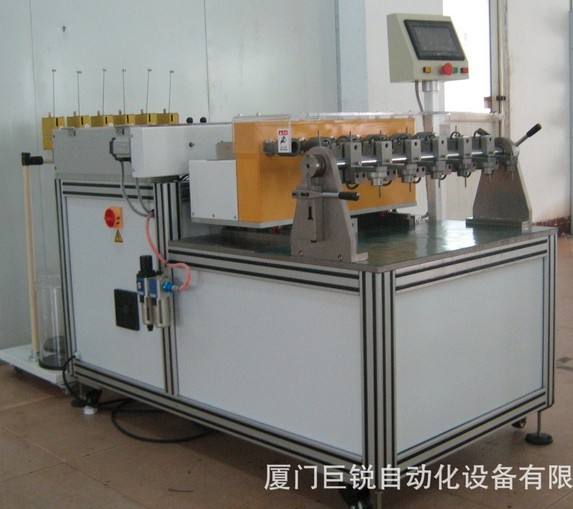

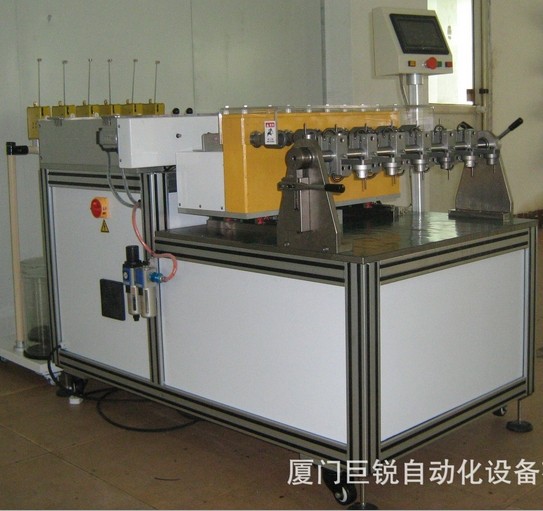

The automatic wire winding machine for high-speed winding machine with 6 axis stator of flying fork
Description:
6 axis semi automatic flying fork type with automatic wire winding machine parameters
Control system bus mode motion controller
Spindle speed 16000RPM maximum
Storage memory storage or U disk storage
The cable range is about 90MM
Panasonic servo motor for spindle motor
Cable Panasonic motor servo motor
Stranded motor Panasonic servo motor
Pull motor Panasonic servo motor
Use power 50/60HZ 220V
Spindle number 6 axis 120MM (distance)
The maximum roll diameter Phi 50mm
Application of line diameter 0.05-0.3 (according to the wire diameter tension device)
Stop angle arbitrary can be set at 0.5 degrees
Stop accuracy 0.5
Strand speed 6000RPM maximum
Program edit touch screen input
Number of laps without requirement
The air pressure of 4~5Kgf/c square meters
About 160 (L) X100 (W) X150 (H) cm
The mechanical improvement of the installation of the net weight of the stranded wire machine about 300kg after the installation of the wire is subject to the specification change without notice
Use accessories brand
Servo motor Panasonic (Japan,)
Bearing SKF (Sweden)
Synchronously with Gates 3GT (United States)
Lead screw slide Taiwan silver (Taiwan)
Sensor God (Japan)
Pneumatic cylinder SMC/ (Taiwan, Japan)
Touchscreen vinylon (Taiwan)
Switch at
Annex: number items name type & Specification Quantity remark 1 tools containing wrench, screwdriver, inner hexagon spanner 1set 2 photoelectric sensor 2pcs line 3 barrels of 200 x 300 with rubber seat and lid 6pcs sand, and environmental requirements required environmental temperature - 5 -- 45 degrees; 80% humidity, dry clean 0.4 to 0.6MPa gas source stable, daily cleaning and regular maintenance, standard ground;
