1, the device for the bio chip, biosensor manufacturers and research and development.
2, the external installation of the equipment sealed cover, internal temperature and humidity control instrument to ensure that the machine is suitable for the production of environmental requirements for the product.
3, high precision laser measuring instrument on the surface of the printed product specific logo, color (such as electrode or other lines) for precise positioning.
4, the device has a bus communication mode controller. For special customer customization can increase the remote communication, in order to facilitate the future of equipment maintenance and software upgrade.
5, point or injection valve for easy cleaning, automatic cleaning process equipment, customer requirements can be customized to customize reagent point / spray / spray spray.
The reagent circulation process without any metal contact, in order to avoid reagent and pump and valve metal materials for reaction.
6, the operating interface is simple and clear, and the configuration of the teaching mode. Do not repeatedly flip the interface to set the project, logic in accord with human thinking, give a comfortable, relaxed working state

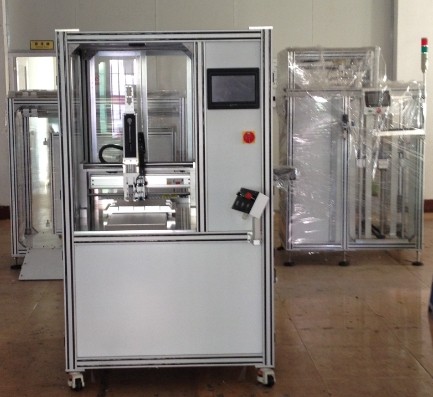

Model
WM-401
Work table travel
100mm-600mm to determine the working table according to product size
Point liquid precision
Pump delivery accuracy is: 0.5 liters for the unit
Valve spit out the accuracy: 10 liters for the unit
Coordinate error
+-0.02
Spit error
0.5%
Return suction device
Yes
Spit speed
Maximum 120 times per second
Coordinate moving speed
Maximum 15 m / minute
Point liquid / injection system
Pump for the Swiss emperor for my company customized model
Piezoelectric ceramic valve customized according to customer needs
Programming operation
Touch screen human-machine interface input
Mechanical Dimensions
860MM*750MM*1600MM (the size of the travel device will change)
Gas source
0.6-0.7Mpa (clean and stable gas source)
Mechanical weight
About 155KG
Consumption power
1.6KVA
Use power source
60HZ, AC220V/50
The equipment is constantly updated as if there are any changes to the action without notice.
