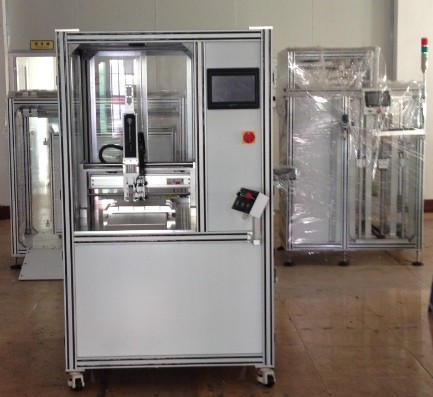

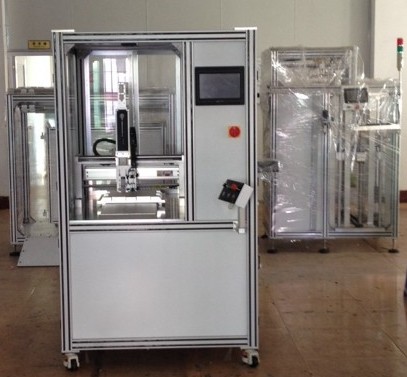

Blood glucose test paper minimal enzyme automatic equipment
Description:
Customized processing: brand: giant sharp jeari model: WM-401
Power supply voltage: 220 (v) power consumption: 1600 (w) air-source: 0.6-0.7
Out time adjustment: 0.0001 (s) out frequency: 120 (times/min) the smallestthroughput: 0.000005 (ML)
Specification: 300*500*1200 spit out precision: 0.5 ng l for units 1injection accuracy: 0.5% error
Micro pump accuracy: 0.5 ng l for 1 unit
1, the equipment for bio-chip, manufacturers of biosensors research and development together.
2, equipment installed outside seal shield, installed inside temperatureand humidity controller to ensure that the inside of the machine for theproduction of the environmental requirements of the product.
3, high precision laser measuring instrument of surface printing a specificflag, color (if the electrode or the other lines) for precise positioningof the product.
4, bus communication controller. Customized for specific customer canincrease the remote communication to facilitate future maintenance andsoftware upgrades.
5, point the needle or the injection valves facilitate cleaning, thecleaning process equipment automatically, install customer requirements can be customized Kit/Jet/spray coating.
Flow process without any metal contact of reagents to avoid reagent reactswith metal pump and valve.
6, the interface is simple and straightforward, and configure the teachmode. Do not repeatedly turn the interface settings item, and logic of thehuman mind, gives a comfortable, relaxed working conditions
Model
WM-401
Plane travel of table
100mm-600mm according to the product to determine the size of work table
Accuracy of liquid
Pump delivery accuracy: 0.5 ng l units
Valve spits out precision: 10 Nano-liter units
Coordinate error
+-0.02
Spit out errors
0.5%
Back to device
Have
Outlet velocity
Up to 120 times per second
Coordinate speed
Up to 15 m/min
Liquid injection system
Piezoelectric ceramic valve according to customer requirements
Program operation
Touch screen input
Mechanical dimensions
860MM*750MM*1600MM (trip different device sizes have changed)
Gas source
0.6-0.7Mpa (clean and stable air supply)
Machine weight
About 155KG
Consumption power
1.6KVA
Using the power
AC220V/50、60HZ
Equipment constantly updated against change without prior notice.
