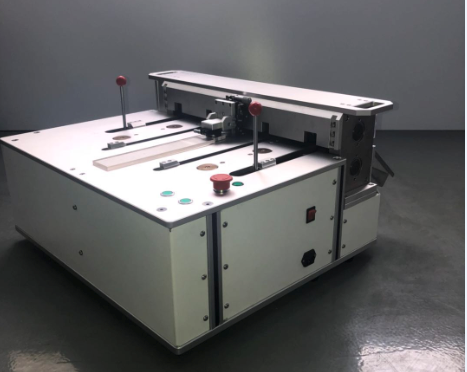

Blood glucose test strip multi-channel strip cutting machine
Description:
1. This equipment is a high-precision and high-efficiency rolling cutting device developed for blood glucose test strip manufacturers.
2. The equipment is divided into: 1. with automatic induction specific identification, automatic correction, 2. manual centerline alignment, or sideline positioning, 3. positioning hole positioning. 3 types of positioning methods. With fast speed, high efficiency and stable quality, it is a very ideal production equipment for production enterprises.
3. The test paper printed with specific marks and color blocks (such as electrodes or other lines) on the surface and digital optical fiber scanning for precise positioning.
4. For the alignment of the artificial center line, the positioning hole is positioned. No editing program is required for the type of device. Simple and fast operation
5, using D2 alloy blades imported from the United States or F2A high-speed alloy steel blades from Japan, has good wear resistance and durable. It can be estimated that the customer needs titanium treatment. Generally, it can be used for 2 to 3 years without grinding.
6. The equipment can be positioned as a separate station on the production line and cooperates with the production line for fully automatic production.
7, the equipment is simple to operate, no need to edit any programs, maintenance is extremely convenient.
model
WM-210
Worktable stroke
200mmX150mm-660mmX520mm Determine the work surface according to the product size
Cutting accuracy
Inductive: within 300mm error + -0.1mm (linear offset after correct alignment)
Artificial alignment: Generally within + -0.1 according to the phenomenon of artificial alignment
(Linear offset after correct alignment)
Rolling accuracy: + -0.05MM
Maximum slice width
25-40 / width as required
Rolling channels (number)
4-12 channels (customized according to customer needs)
Applicable thickness
Within 1.2mm (PET material)
Cutting speed
220 rpm max. Speed adjustable
Program operation
Touch screen human-machine interface input (manual alignment and positioning hole positioning without programming)
Mechanical Dimensions
660MM * 650MM * 370MM (the size of the device will vary according to the layout)
Gas source
0.6Mpa (clean gas source)
Mechanical weight
About 65-160KG (depending on the size and weight of the device)
Power consumption
0.5KVA
using electric
AC220V / 50, 60HZ
Note: If the parameters are changed due to equipment technology upgrade without notice
