Process flow Automatic loading of single piece, roll cutting and automatic rejection of leftover material. (Automatic separation of leftovers, and left and right pieces of 25 pieces) (or 50 pieces into bottles)

Production efficiency The completion time of the equipment is: complete a cycle of about 4-8 seconds.

Result The equipment automatically picks up materials, automatically aligns, cuts and rejects scraps. (Automatically separate the left and right 25 pieces). Automatic bottle filling.



Automatic detection and automatic filling. Add CCD detection module and automatic bottle feeding module.

Automatic feeding into bottles is divided into:

1. Take out by hand and put in the bottle.

 2. Bottles are automatically placed and removed by the device.

 3. Manually detect or monitor before collection. Or the equipment will automatically detect and remove the defective CCD and make up the quantity.

work process

• For single-chip cutting, the operator places the cut long-board substrate into the device storage area (about 150 pieces are placed), which is grasped by the device sucker and placed in the device registration area for alignment. After positioning is completed, the device Long board substrates are sent to the cutting area. (The equipment's automatic unloading process is for the operator to stack the long board substrates and place them in the equipment storage box. The equipment automatically removes a plate and places it in the work area for alignment.) Equipment After cutting, the finished product and the trim are automatically separated, and the finished test paper directly falls into the product test paper collection mechanism, and the collection mechanism will move to the collection position. Carry out automatic bottle filling function

Product flow layout according to workshop design

Equipment dimensions

As well as compact and other structures, but easy to operate and maintain

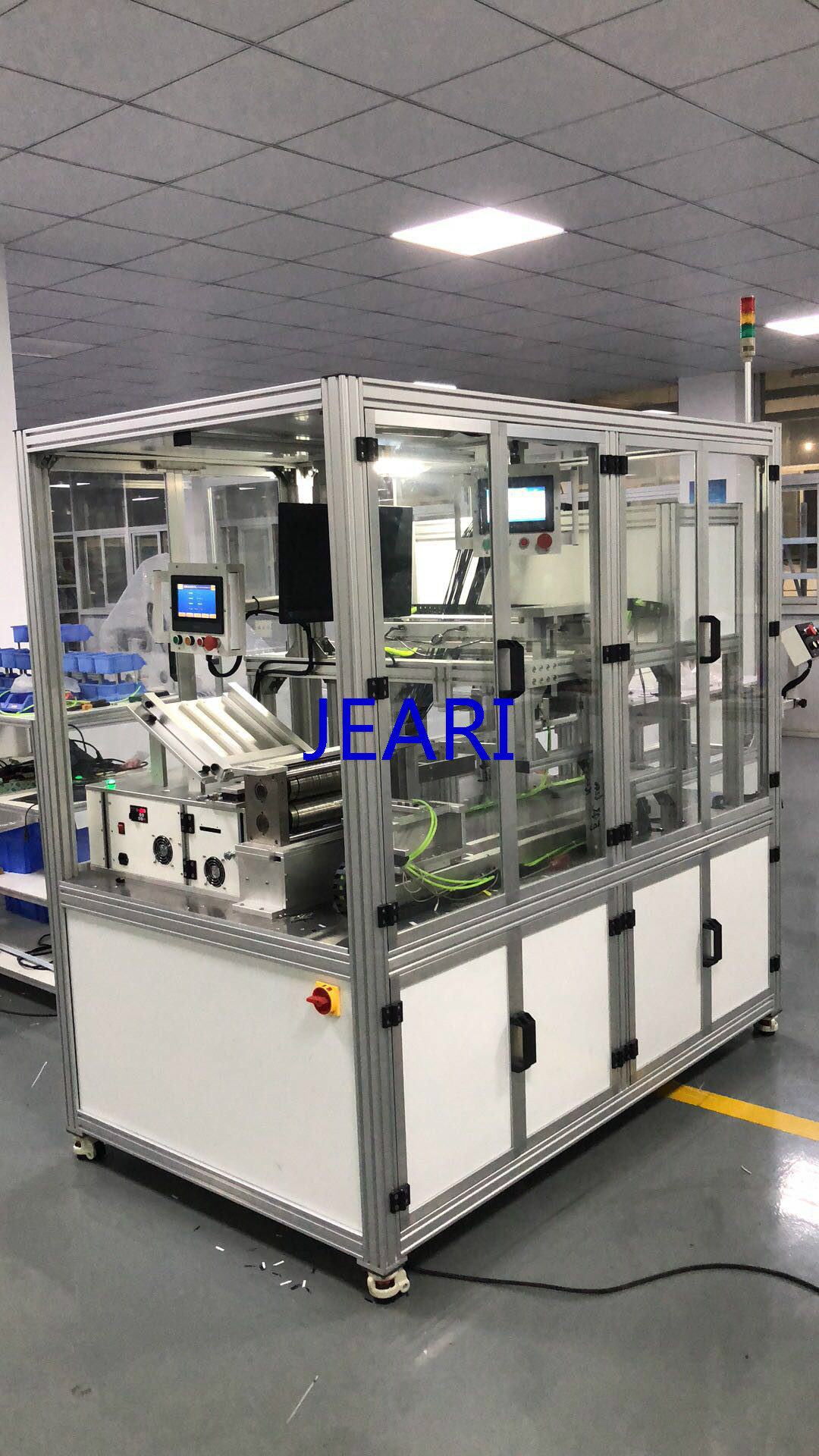

Equipment appearance according to about:

The following equipment can choose to be composed of single or multiple production lines.

The device needs safety protection and static electricity removal in the functional area.
